Teardrop-Shaped Crusher

Description

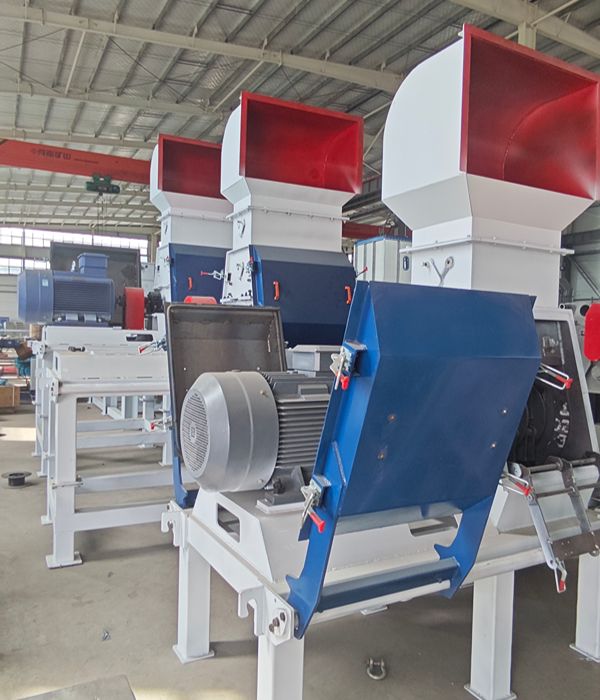

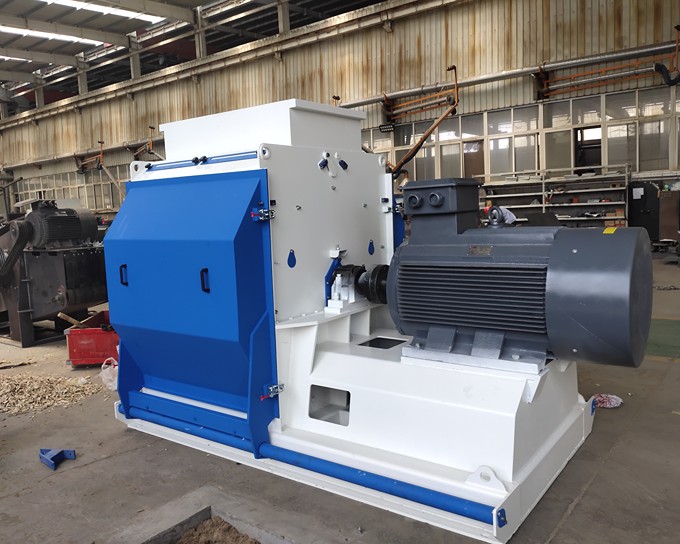

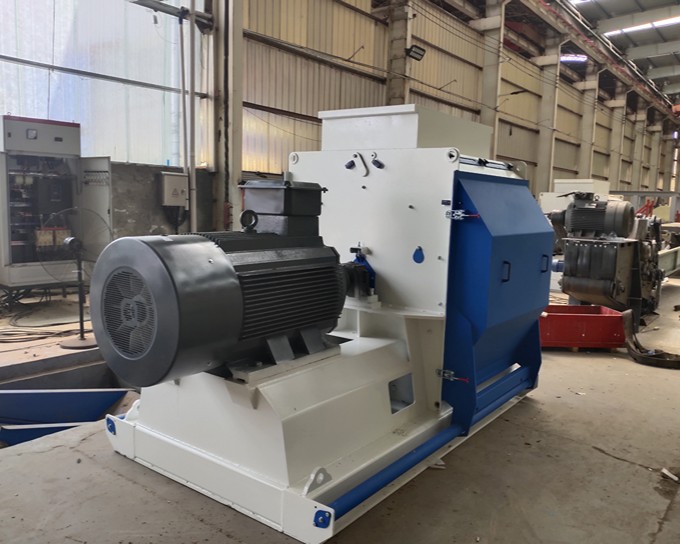

The teardrop-shaped crusher is a standard product meticulously developed by our company, primarily designed to crush various types of wood chips, wood strips, straw, weeds, and other materials. This series of teardrop-shaped shredders employs direct shaft drive and a high-speed motor. The shredding chamber utilizes secondary impact technology, resulting in a finer and more uniform particle size for the final product. Additionally, the machine can rotate in both clockwise and counterclockwise directions, ensuring even wear on the shredding rotor and hammer blades and maintaining effective dynamic balance throughout its service life. This design addresses structural issues frequently reported by customers, such as high output and stable operation in new machines, followed by significant vibration and a severe drop in output after a few months. The main shaft bearings are high-quality, imported NSK bearings. The main unit features a sliding door and an elastic screen-pressing structure, ensuring easy operation and maintenance. This machine offers high output and low power consumption, and is capable of performing general, fine, and ultra-fine grinding. It is widely used in large and medium-sized biomass pellet plants, feed mills, citric acid plants, food processing plants, and other industries.

Product Feature

• Suitable for a wide variety of materials;
• The alloy cutting tools are wear-resistant and sharp, extending the equipment’s service life.
• The crushing chamber employs a multi-stage crushing and fine-crushing mechanism, delivering high impact force, boosting production efficiency by 20%–35%, and offering strong fine-crushing capabilities.

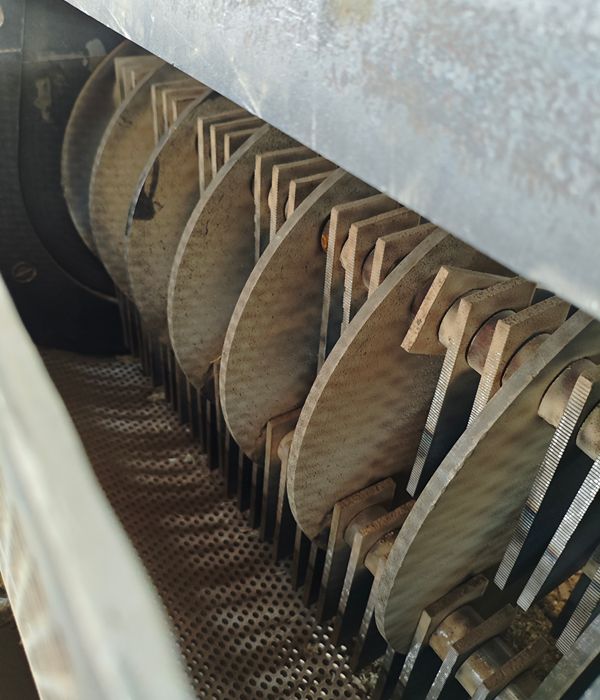

• The hammer plates are coated using a tungsten carbide thermal spraying process, allowing for multi-sided use, which improves production efficiency and reduces operating costs.

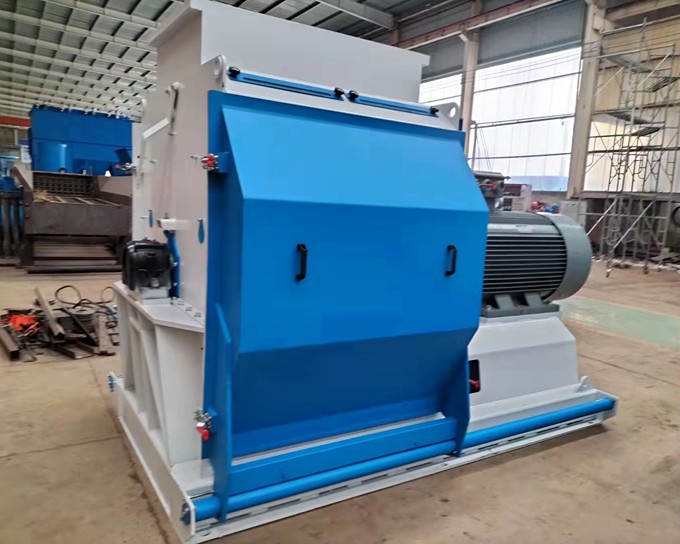

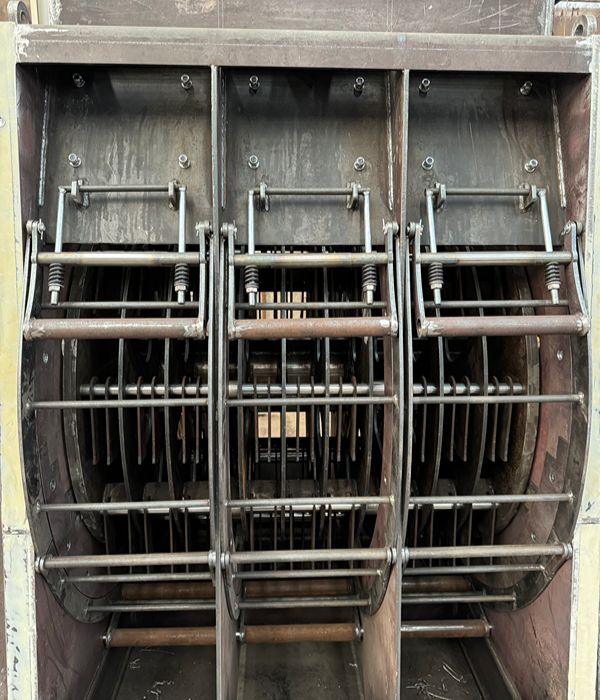

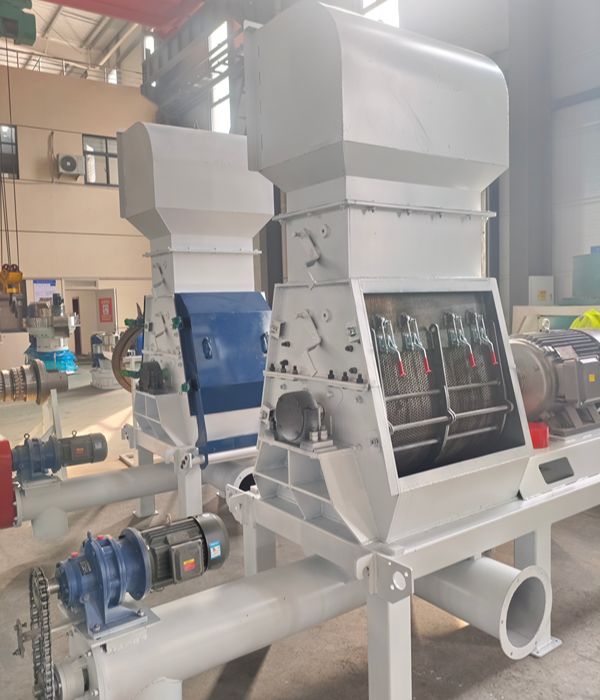

• Maintenance is simple: a quick-opening inspection door and a spring-loaded screen frame enable rapid screen replacement and hammer plate maintenance.

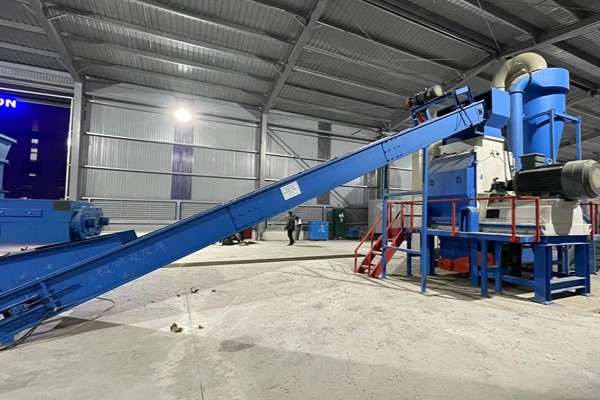

Product Applications

1. Large, medium, and small feed mills and livestock farms: Grinds main ingredients for compound feed production lines, producing fine, uniform powder that improves digestion and absorption rates in livestock and poultry; suitable for the preliminary grinding process prior to producing powdered or pelletized feed;
2. Edible mushroom cultivation bases and mushroom substrate processing plants: Grinds wood chips and corn cobs to produce substrates for shiitake, wood ear, and oyster mushroom bags. The resulting particles are uniform in size and free of sharp, hard splinters, minimizing the risk of puncturing the mushroom bags;
3. Biomass energy industry: Grinds wood chips and crop straw to produce biomass fuel pellets and briquettes;
4. Organic fertilizer processing plants: Grinds dead branches, straw, and livestock bedding for fermentation to produce well-decomposed organic fertilizer and seedling growing media;
5. Food, brewing, and traditional Chinese medicine processing plants: Fine grinding of raw materials for pretreatment.

Model Specifications
