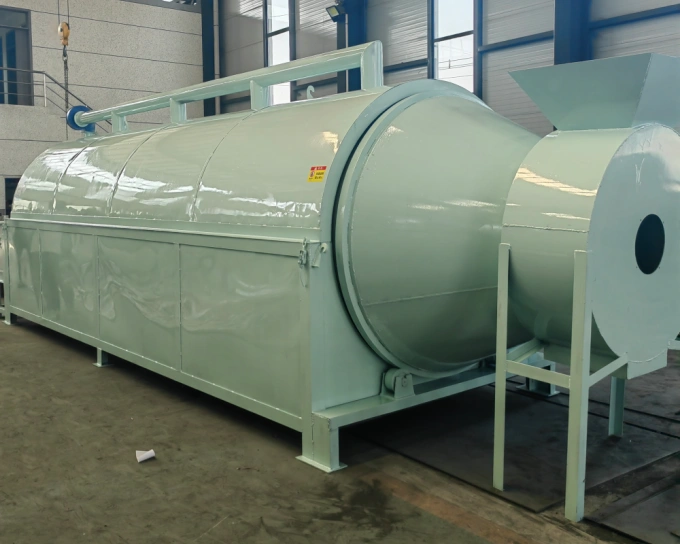

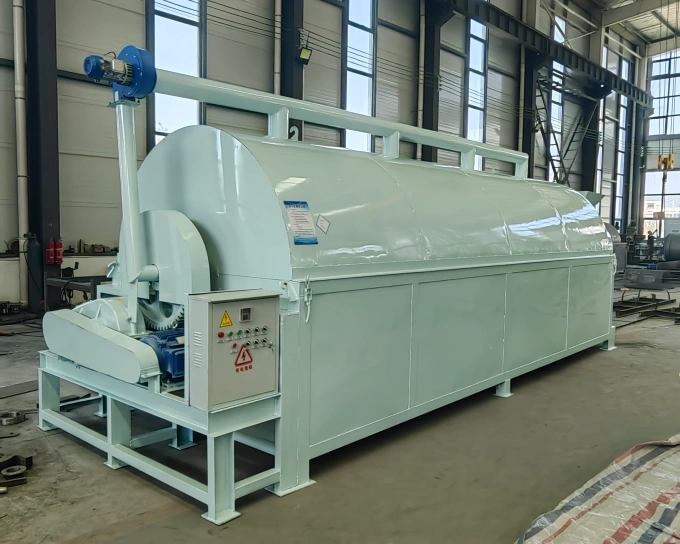

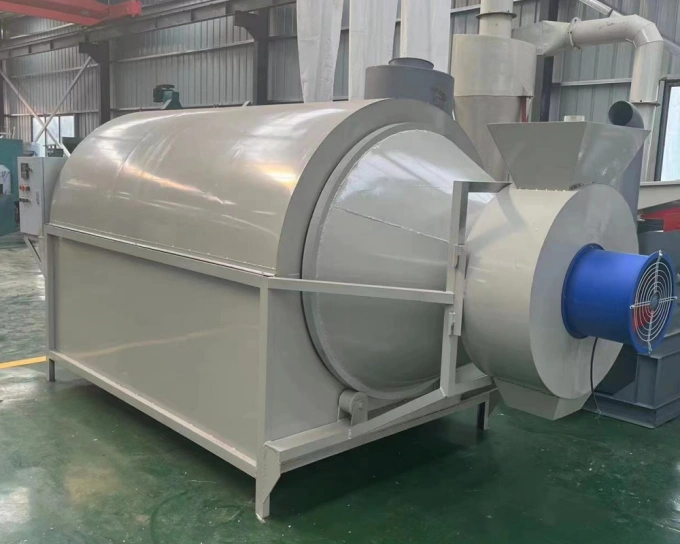

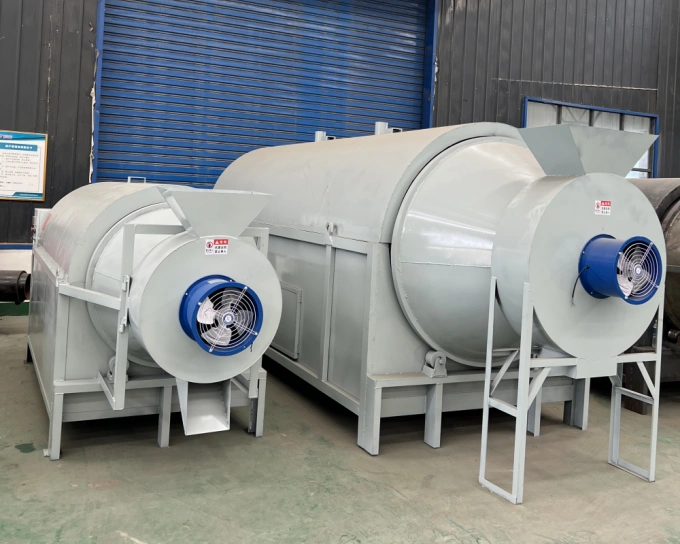

Description

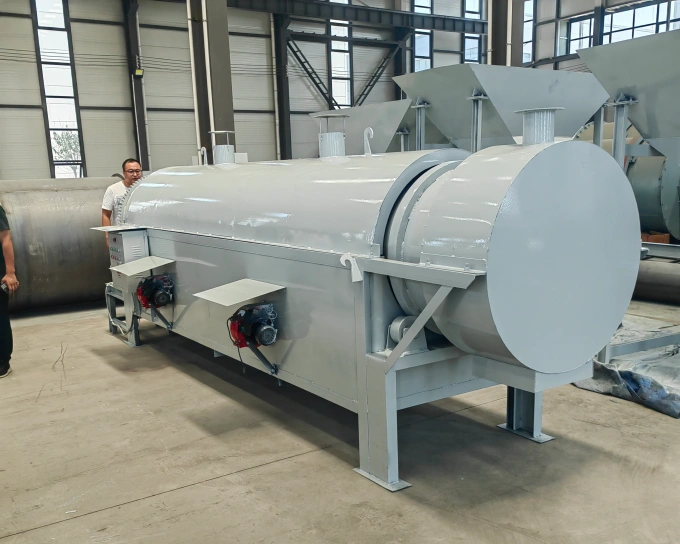

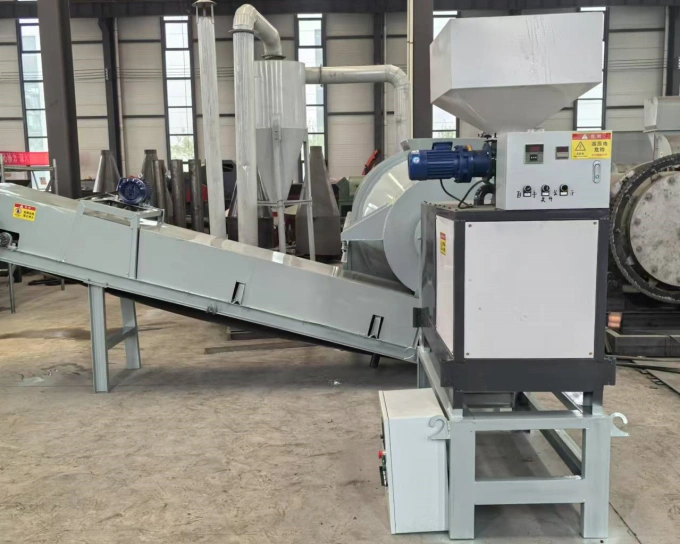

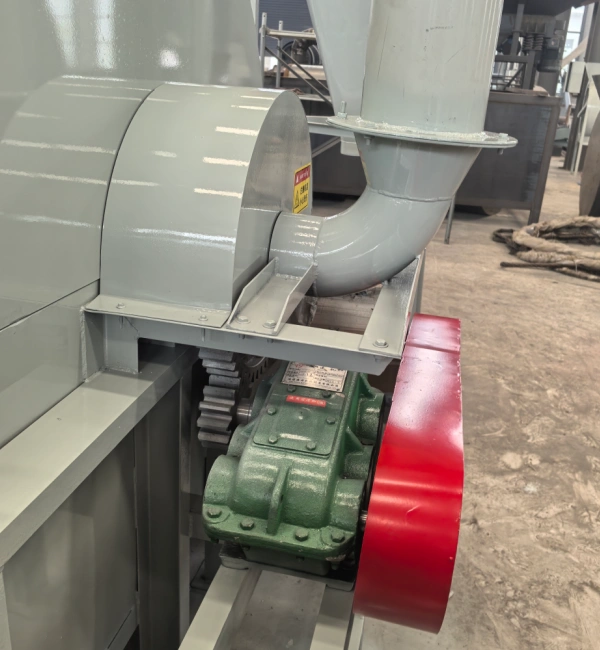

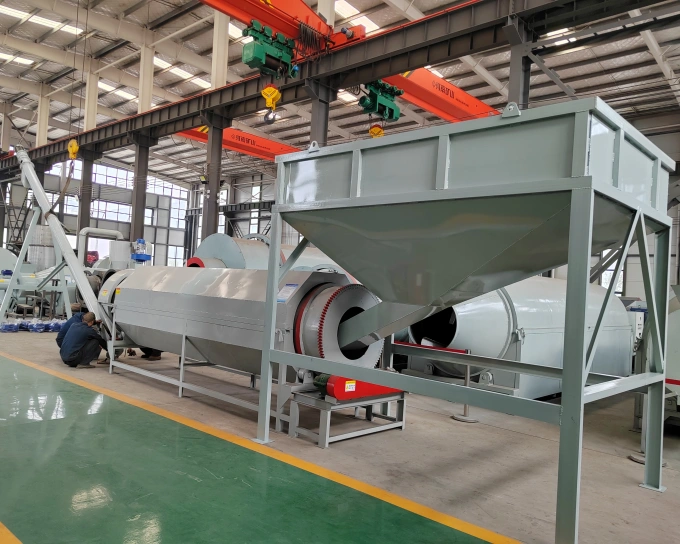

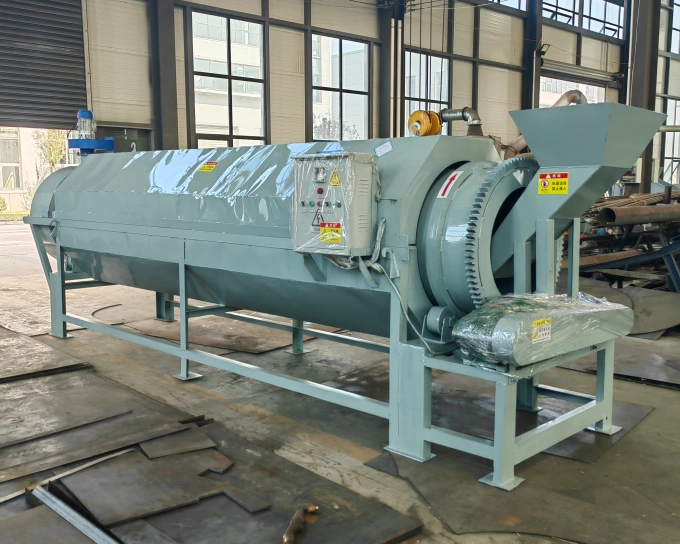

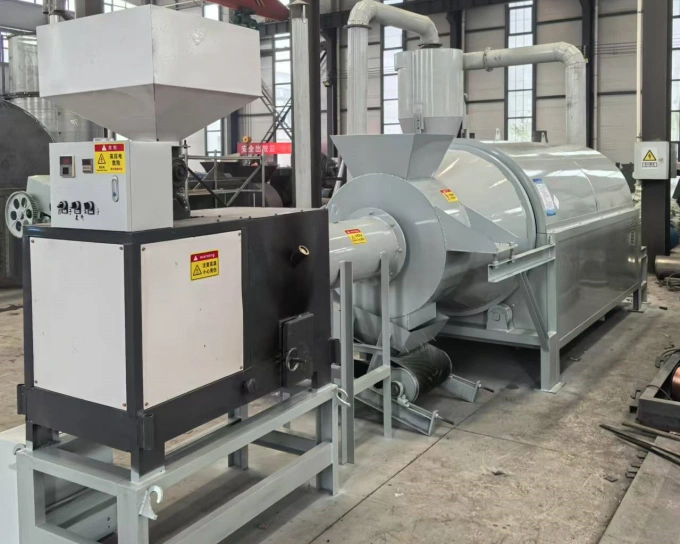

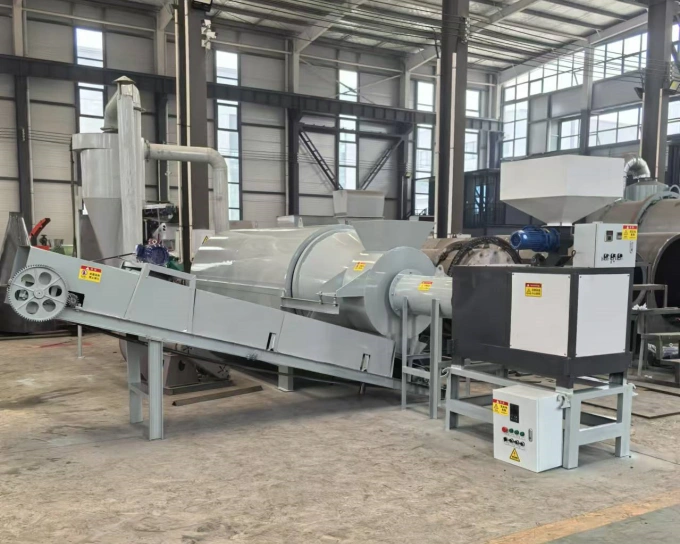

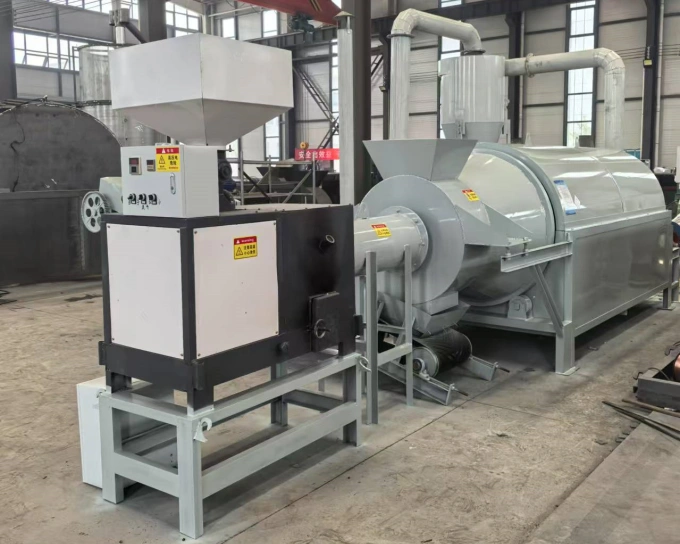

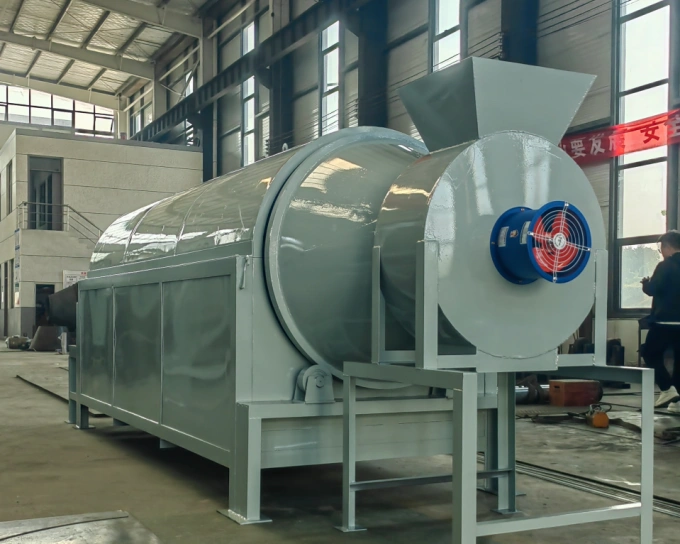

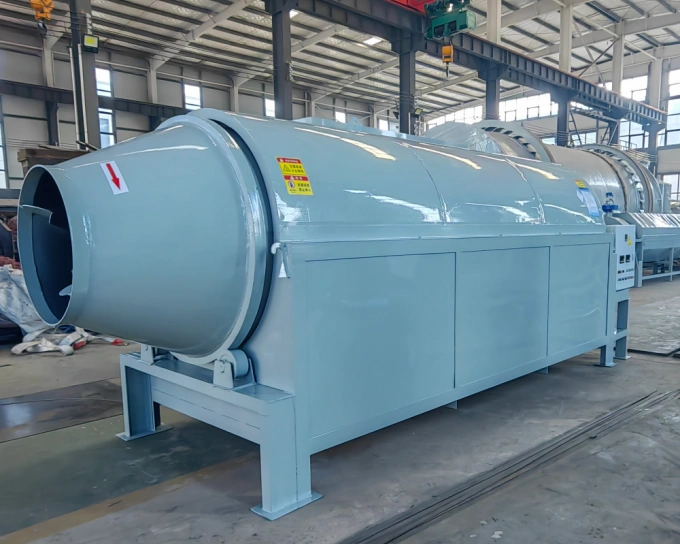

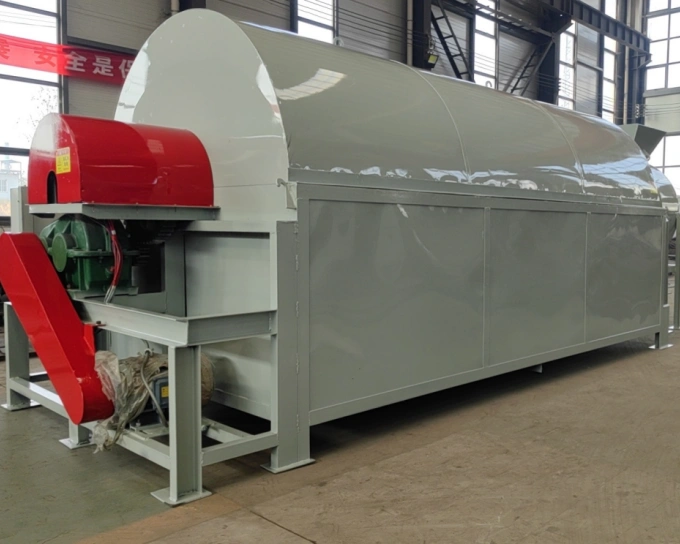

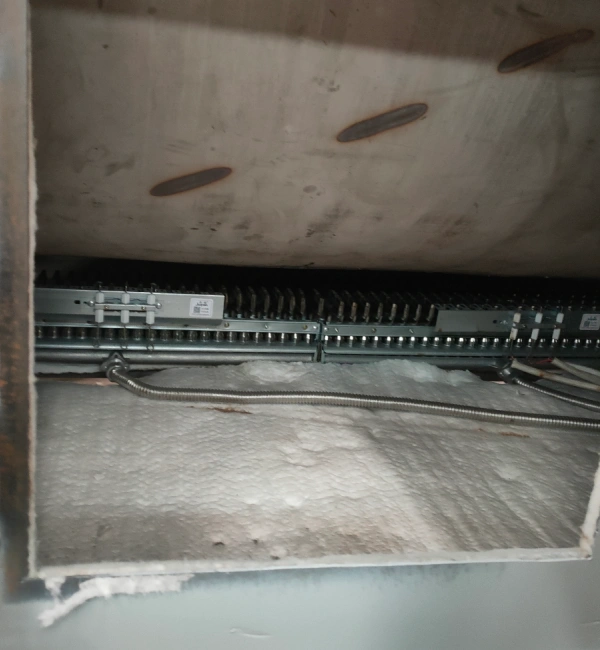

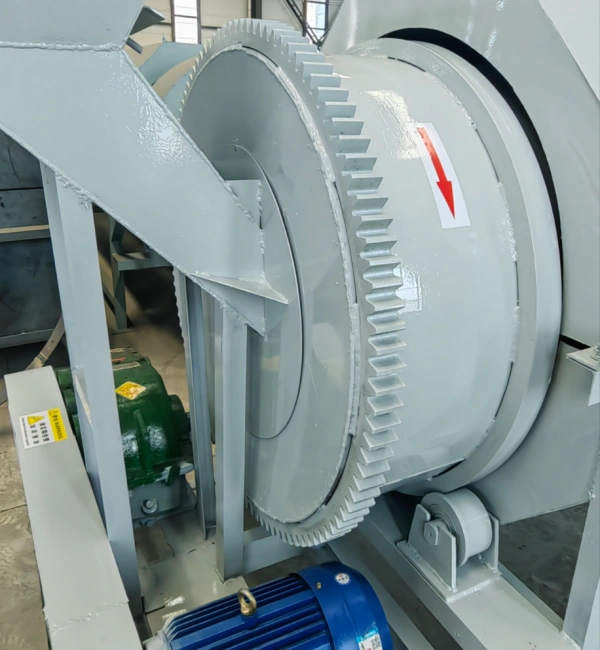

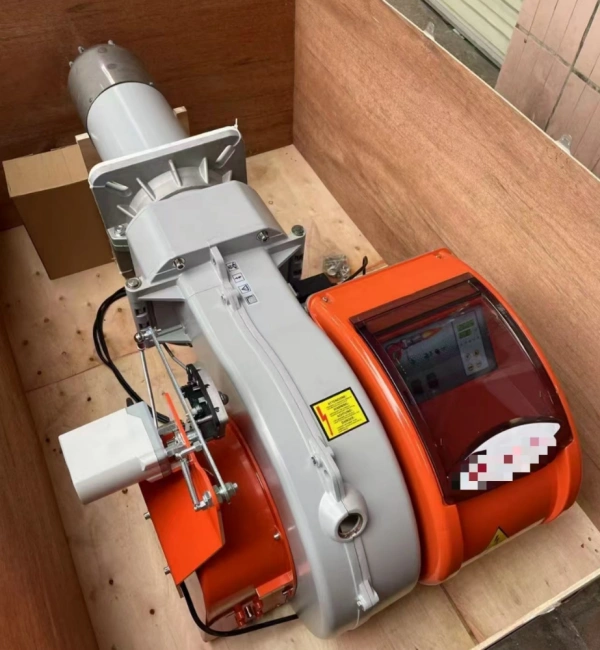

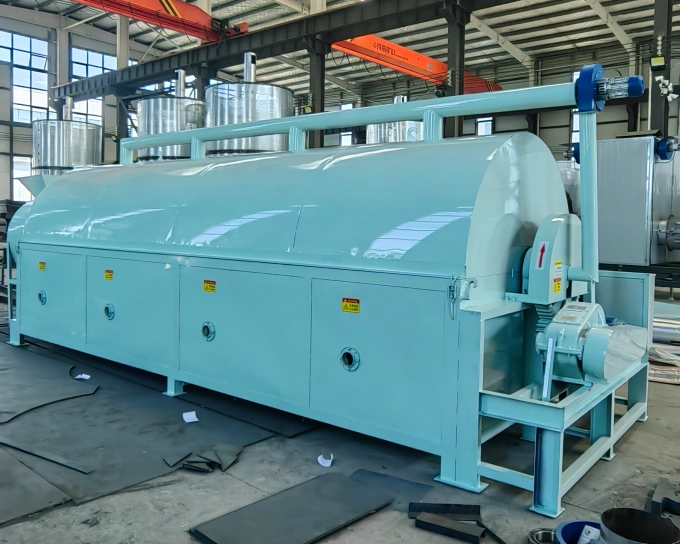

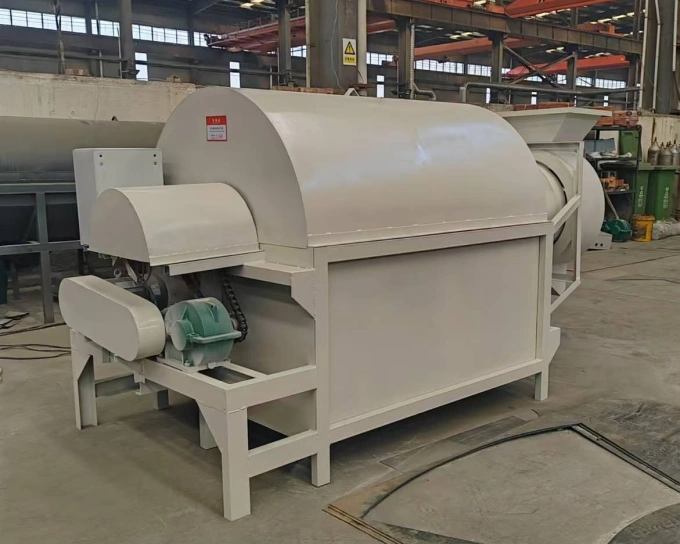

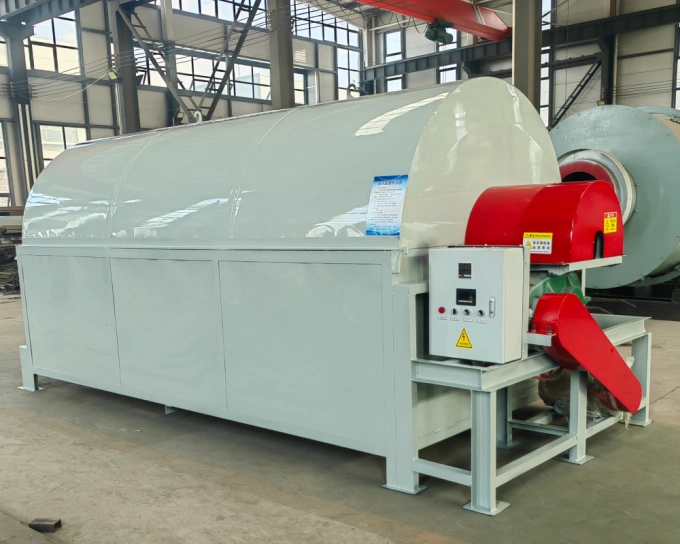

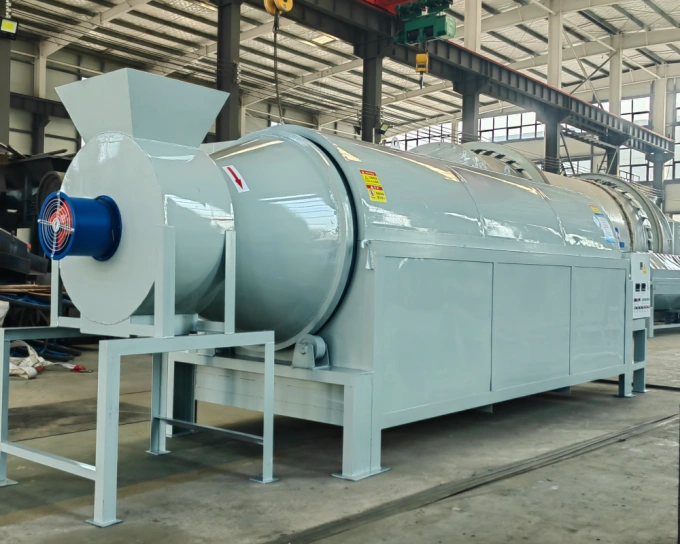

Small horizontal dryer is a kind of equipment used for small-scale drying operations, a machine can be used for various purposes, the equipment can use electricity, gas, biomass pellets or coal as a heating source, electric rotary stir-frying out of the material.
Product Features
- Compact structure: small footprint, suitable for places with limited space.
- Reliable work: stable operation, low failure rate, able to work continuously for a long time.

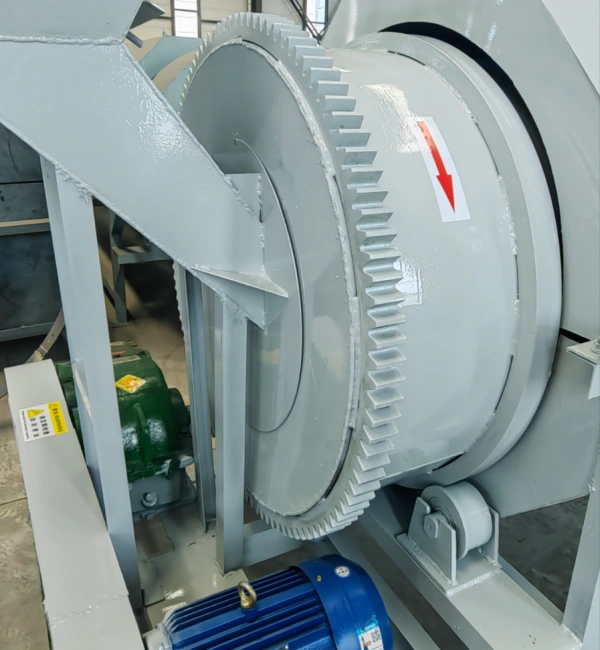

- High thermal efficiency: the material is constantly rolling in the drum, fully in contact with the heat source, high heat utilization rate, good drying effect.

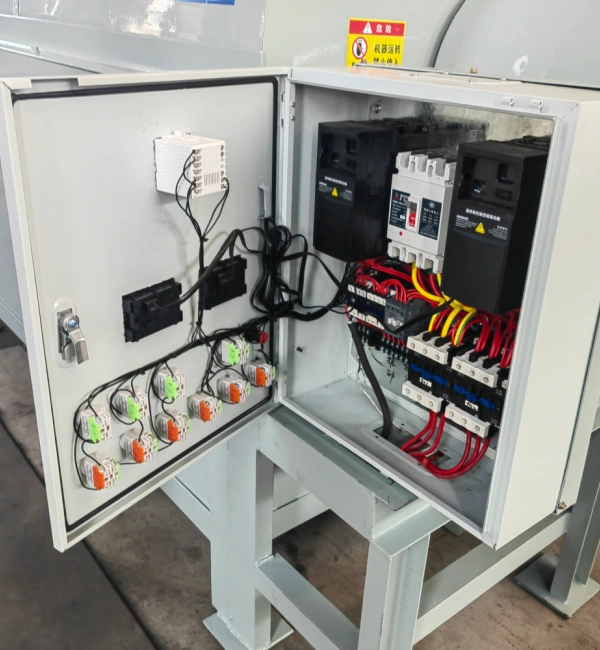

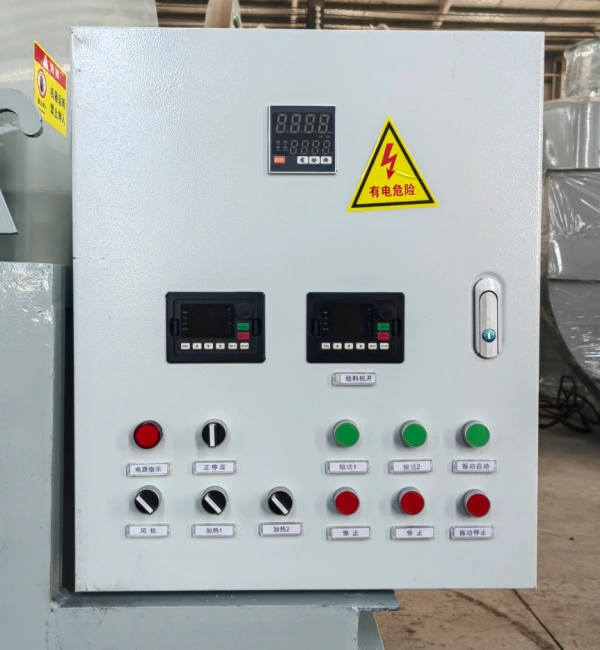

- Simple operation: high degree of automation, easy to operate, just set the drying parameters, the equipment can run automatically.
- Easy to move: some small horizontal dryers are designed with wheels or easy-to-move structures, which are convenient to use in different sites.
Applicable Industries
Agricultural field
1. Grain drying. 2. Seed drying. 3. Drying of raw materials for processing agricultural products.
Industrial field
1. Mineral products drying. 2. Chemical raw materials and products drying. 3. Building material raw material drying.
Other fields
1. Food processing industry. 2. Pet food production.
Product Applications
Widely used in biomass power plants, furniture factories, incense factories, mechanical charcoal, biomass boilers, man-made board processing plants, biomass fuels, edible fungi cultivation, fertilisers, papermaking, pelleting, machine-made charcoal, particle board, sawdust board and other industrial production .
Model Specifications
| Model | Power Consumption | Power(KW) | Capacity(Kg/h) | OverallSize(m) | ||
| Electric power(Kw/h） | Coal, Diesel(Kg/h) | Natural gas( m³/h) | ||||
| DB-200 | 20～30 | 10～15 | 3.6 | 1.5 | 200 | 3×1.1×1.450 |
| DB-300 | 30～40 | 15～20 | 4.8 | 2.2 | 300 | 3.1×1.3×1.5 |
| DB-500 | 40～50 | 20～30 | 7.9 | 3 | 500 | 4.2×1.25×1.6 |
| DB-1000 | 60～80 | 40～50 | 14 | 4 | 1000 | 4.8×1.5×1.7 |
| DB-1500 | 80 | 60～80 | 28 | 5.5 | 1500 | 5.6×1.6×1.8 |
| DB-2000 | 80～100 | 60～80 | 32 | 7.5 | 2000 | 6×1.8×2 |
| DB-3000 | 120～150 | 80～100 | 41 | 11 | 3000 | 7.8×1.8×2.1 |
| DB-5000 | 180～200 | 120～150 | 52 | 15 | 5000 | 9×2.3×2.4 |
| Can be customised in stainless steel or special materials. | ||||||
