Description

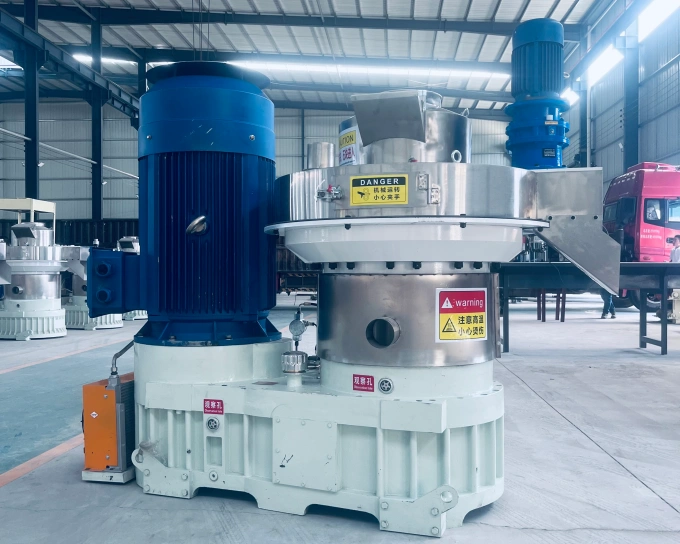

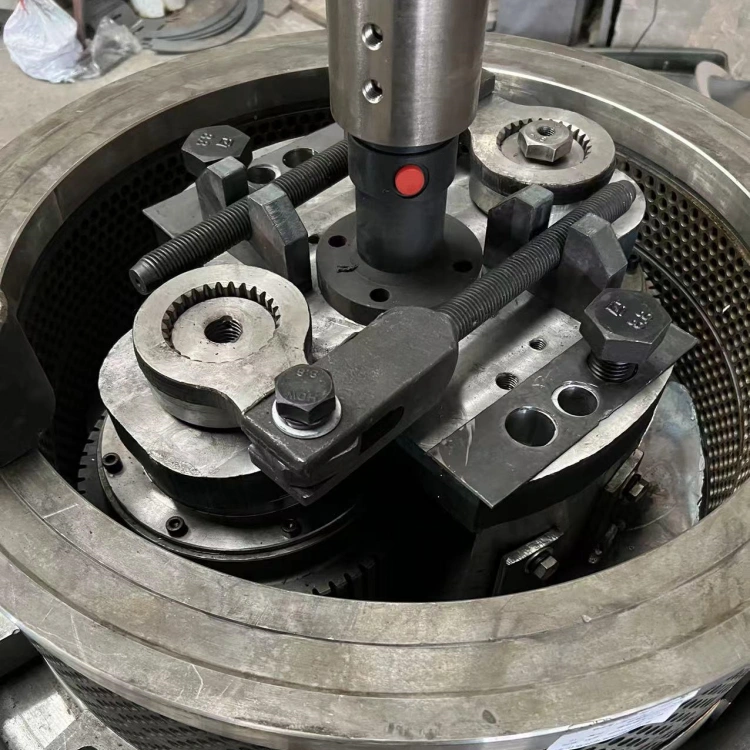

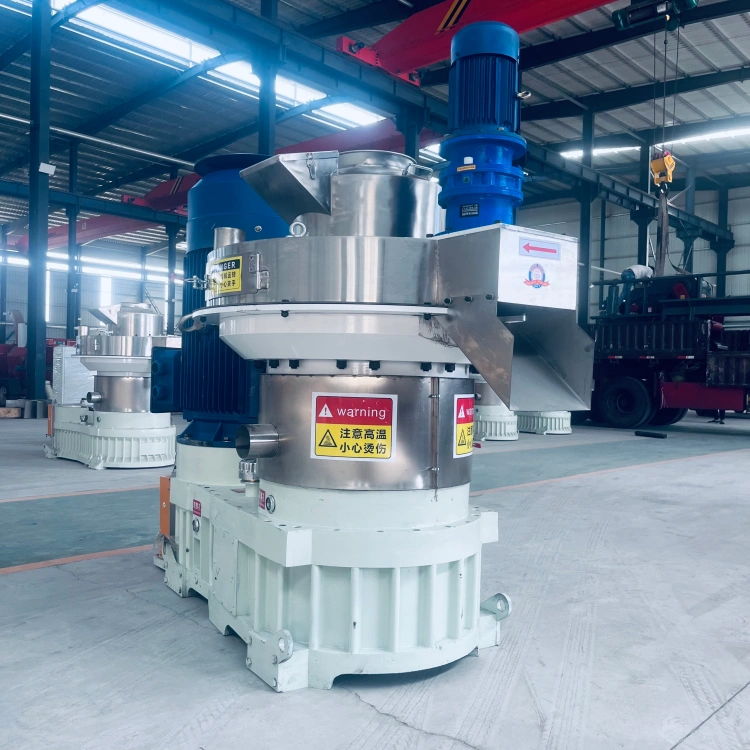

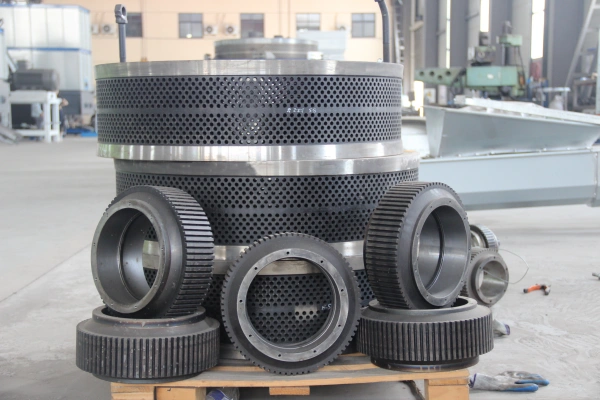

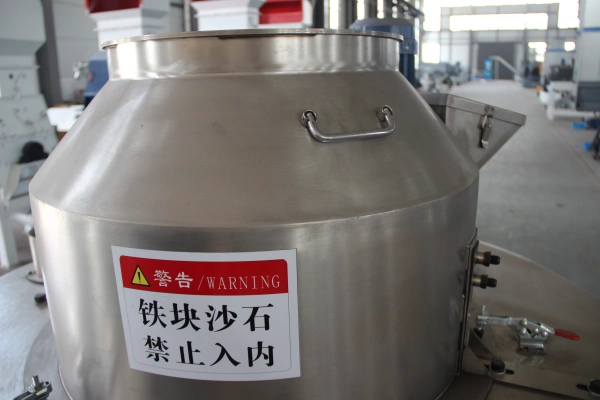

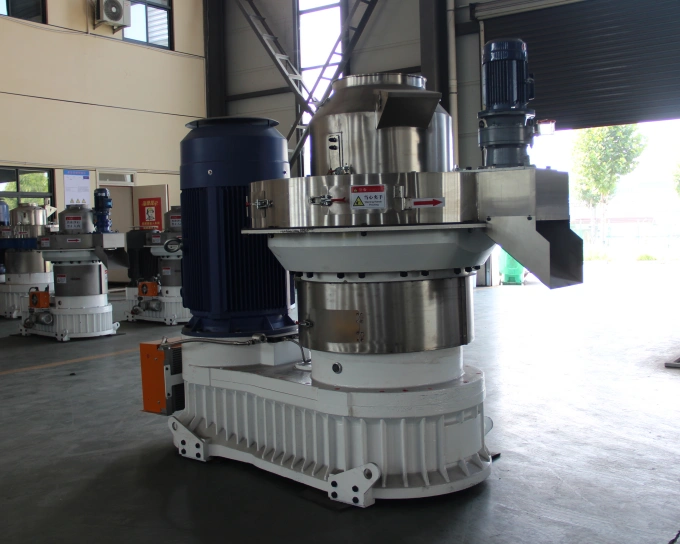

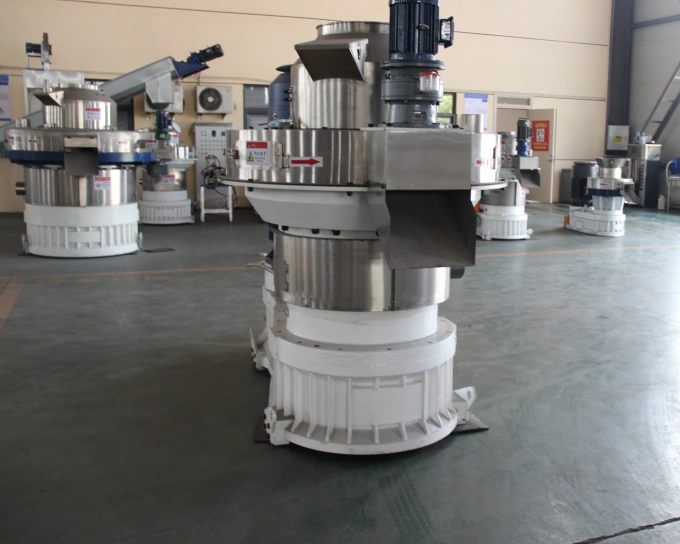

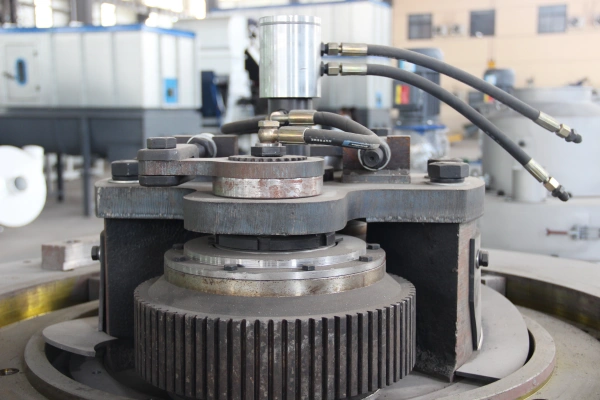

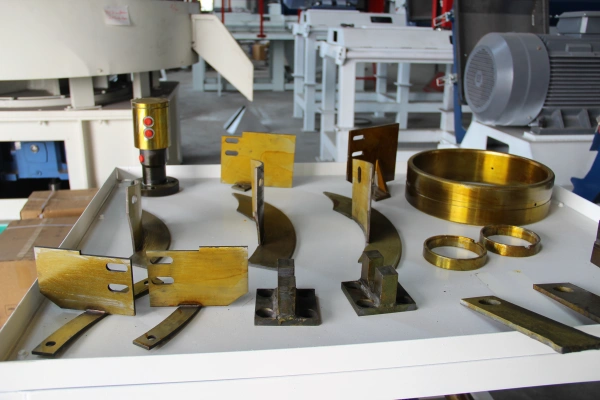

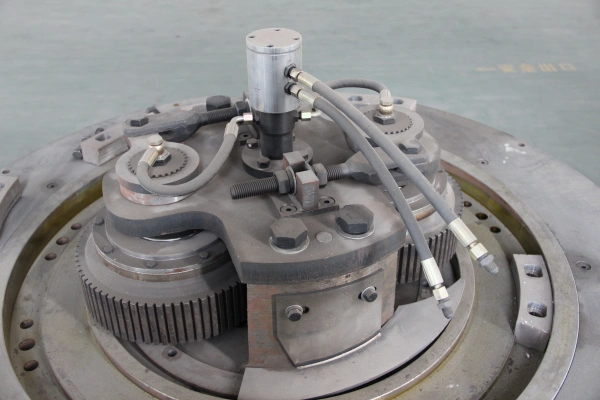

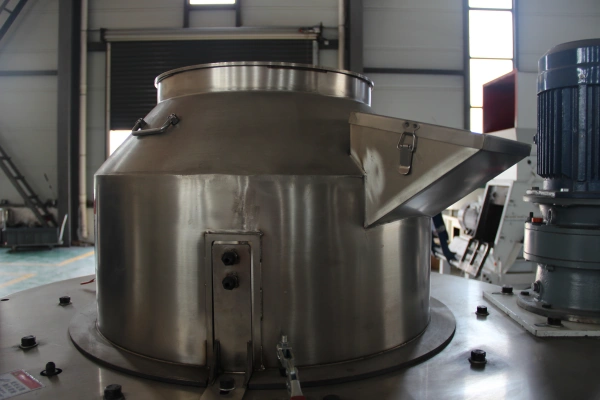

The plastic pelletizer is essentially a dry-extrusion pelletizer; it is so named because the material is continuously extruded through the die holes as long, cylindrical strands that closely resemble caterpillars. The main unit consists of a feed hopper, a forced feeding mechanism, a vertical flat die plate, a pressure roller assembly, a heavy-duty gearbox, a main frame, an external cutting blade, and an electrical control system. It features a screw-free melting design and is a purely physical cold extrusion machine that does not require heating or melting the material.
Key Features
Key Product Features (Differences from Screw Granulation)
- Pure dry extrusion process; no heating or melting required, resulting in extremely low operating costs
- Optimized for loose, fluffy materials; forced feeding prevents material from hanging in the air or arching
- Compact pellets that are resistant to breakage
- Modular drive structure ensures low failure rates and strong resistance to impurities
- Simple maintenance; cost-effective replacement parts
- Dual-purpose machine capable of both pre-compression and baling, as well as direct production of finished fuel pellets
- Compact footprint and simple installation
Applicable Industries
- Plastic recycling and pelletizing plants
- Biomass fuel processing plants and charcoal plants
- Solid waste treatment and RDF fuel production facilities
- Small and medium-sized livestock farms and feed mills
- Paper mills, nonwoven fabric mills, and textile processing plants
- Organic fertilizer production plants
Product Parameter
| Model | Power(KW) | Capacity(T/h) | Pellet specification(mm) | Pellet density(T/m³) | OverallSizem) | Weight(t) |
| 450 | 55 | 0.8～1 | φ6～φ12 | 0.8～1.2 | 1.35×0.66×1.3 | 2.5 |
| 470 | 75 | 1～1.2 | 2.23×1.01×1.61 | 3.5 | ||
| 560 | 90 | 1.3～1.5 | 2.23×1.19×1.92 | 4.3 | ||
| 580 | 110 | 1.5～2 | 2.23×1.2×1.95 | 4.5 | ||
| 580 | 132 | 1.5～2 | 2.23×1.2×1.95 | 4.8 | ||
| 700 | 160 | 2.5～3 | 2.56×1.37×1.96 | 6.5 | ||
| 850 | 250 | 3.5～4 | 2.7×1.75×2.3 | 14 |
