Description

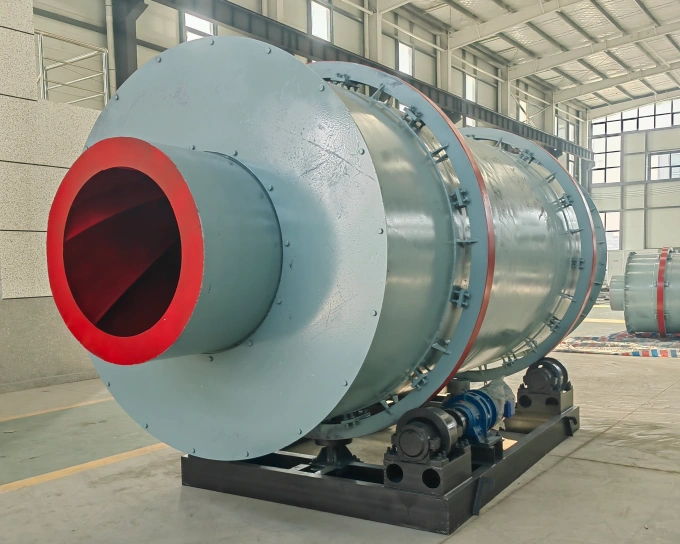

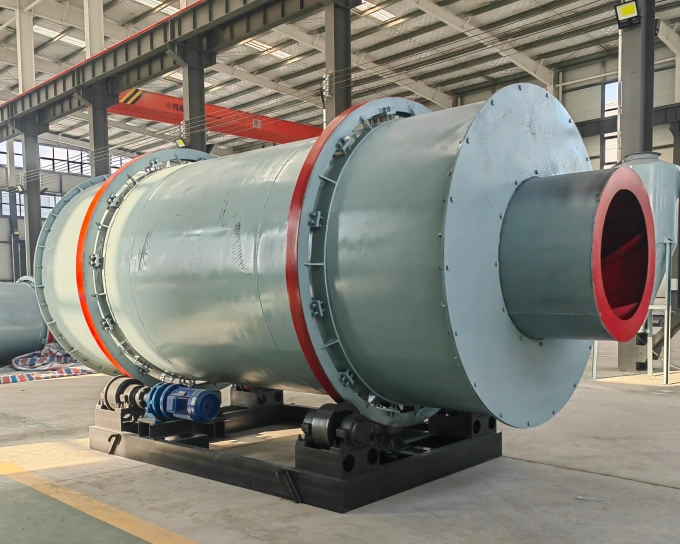

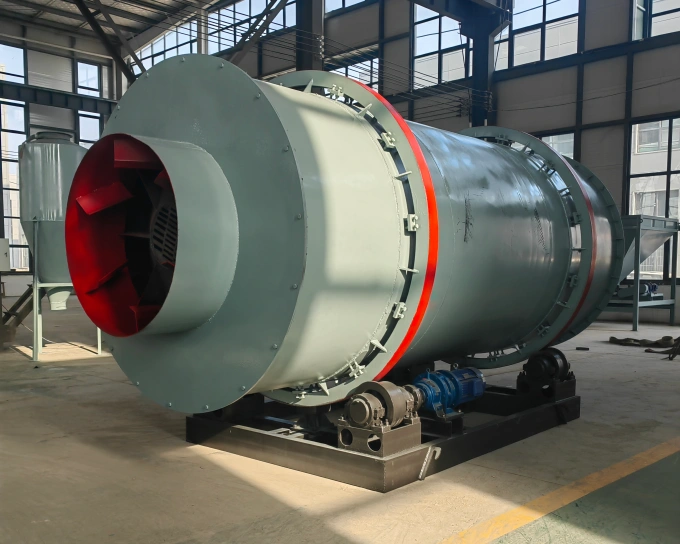

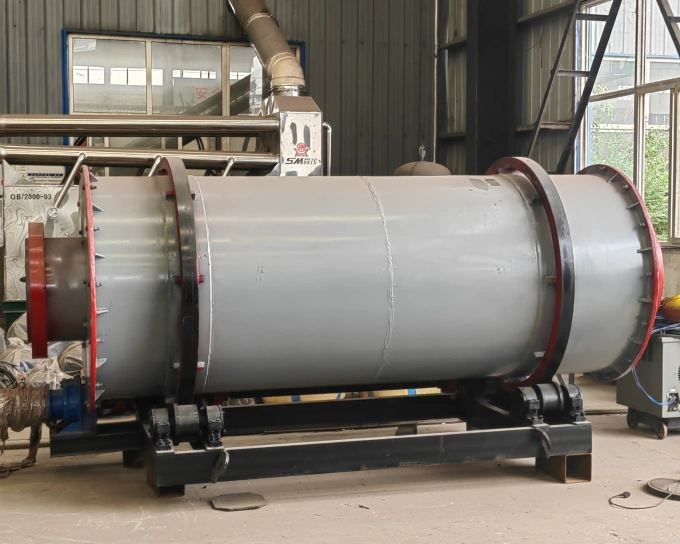

The three-stage rotary dryer is a three-layer, concentric, nested rotary drying system consisting of an inner cylinder, a middle cylinder, and an outer cylinder arranged in a nested configuration. Together with a heat source furnace, feed screw, discharge device, dust collection system, and drive base, it forms a complete drying system. It is the mainstream energy-efficient dewatering equipment used in biomass pellet, mushroom substrate, and charcoal production lines.
Product Feature
- The cylinder is self-insulated, providing exceptional energy efficiency
- Compact design minimizes floor space and civil engineering costs
- Drying is performed in stages, ensuring uniform and stable moisture content in the finished product
- Designed to accommodate the characteristics of wood chips, with a well-engineered anti-clogging system
- Compatible with a wide range of heat sources, ensuring stable and durable operation
- Safety features are designed to address the flammable nature of wood chips
Applicable Industry Scenarios
- Biomass pellet / briquette fuel plants
- Manufactured charcoal and charcoal powder processing plants
- Edible mushroom substrate processing plants
- Wood chip processing plants for export
- Organic fertilizer and seedling growing media plants
- Medium-density fiberboard (MDF) and engineered wood panel plants
Model Specifications
| Model | Output（T/H） | Power（KW） | Blower（KW） | Drum Thickness（mm） | Dust Collector |
| 1230 | 1～3 | 3 | 5.5 | 6 | 600 |
| 1530 | 3～5 | 3*2 | 7.5 | 6 | 600 |
| 1840 | 5～7 | 5.5*2 | 11 | 8 | 800 |
| 2045 | 8～10 | 7.5*2 | 15 | 8 | 1000 |
| 2255 | 12～15 | 11*2 | 18.5 | 10 | 1200 |
| 2500 | 16～20 | 7.5*4 | 22/30 | 12 | 1500 |
| 2860 | 20～25 | 11*4 | 30/45 | 14 | 1500 |
| 3080 | 30～40 | 15*4 | 45/75 | 16 | 1800 |
