Description

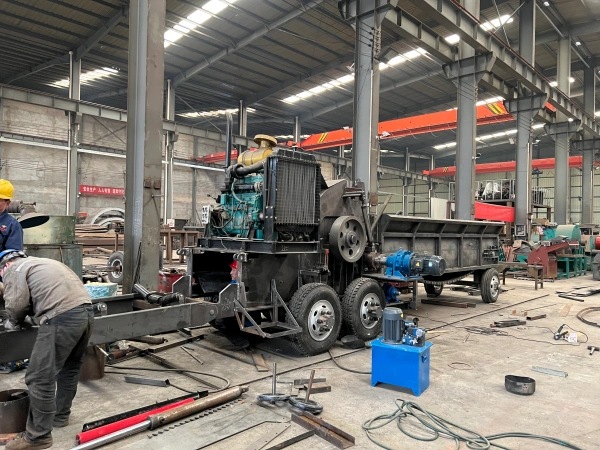

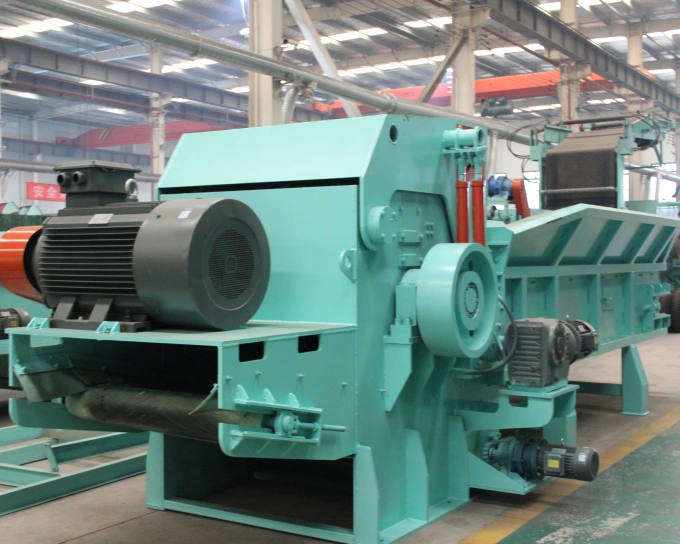

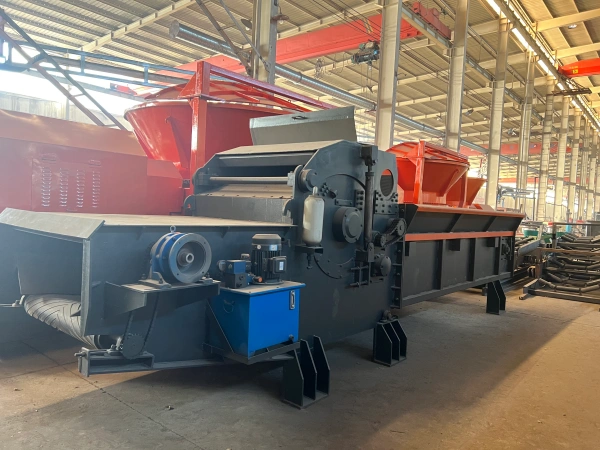

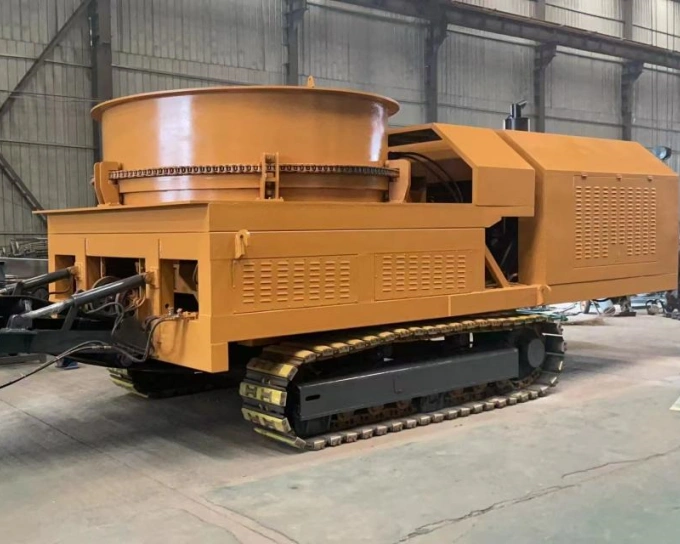

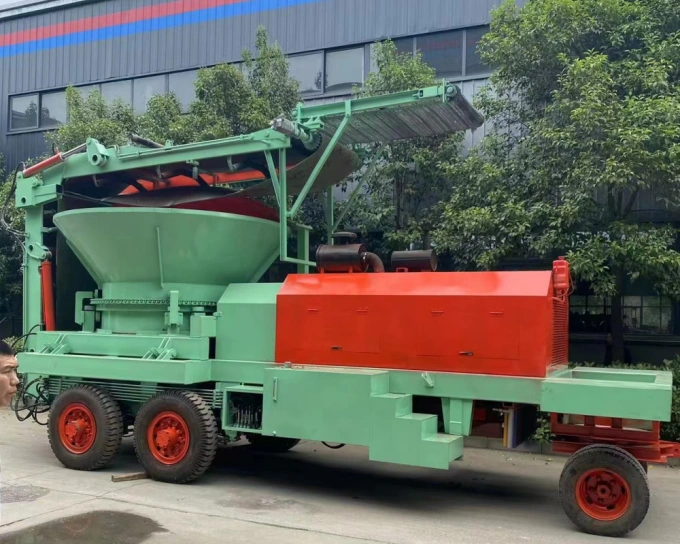

The wood integrated crusher is mainly used for crushing large diameter wood materials such as tree stumps, roots, trunks, all kinds of branches and other wood, but also can be used for baling straw crushing, large wood integrated crusher has the advantages of rapid feeding and high efficiency. Hydraulic material box turning device, can be in need of maintenance or knife change, large angle turning after part of the exposed operation is convenient.
Applicable Materials
Can process wood with nails, wooden pallets, construction site waste templates, wooden pallets, branches, wood, template waste, house demolition waste, doors and windows, etc., but also can deal with all kinds of small-diameter lumber, veneer, slats, round wood core, building templates, etc., and all kinds of non-woody raw materials such as all kinds of bulk straw, cottonwood, reeds, etc.
Product Applications
Widely used in biomass power plants, furniture factories, incense factories, mechanical charcoal, biomass boilers, man-made board processing plants, biomass fuels, edible fungi cultivation, fertilisers, papermaking, pelleting, machine-made charcoal, particle board, sawdust board and other industrial production .
Product Parameter
| Model | Main motor power (kw) | Output (T/h) | Feed size (mm) | Hammer blade quantity (piece) | Knife roller speed (r/min) | Size (m) |
| 1000-500 | 90-110 | 10～15 | 1000-500 | 24 | 650 | 7.5*2.8*2.4 |
| 1300-600 | 132-160 | 15～20 | 1300-600 | 24 | 650 | 7.5*2.8*2.4 |
| 1400-600 | 160-180 | 20～30 | 1400-600 | 24 | 760 | 9.6*3*2.6 |
| 1400-800 | 200-220 | 40～50 | 1400-800 | 24 | 900 | 9.9*3*3.1 |
| 1600-600 | 220-250 | 60～80 | 1600-600 | 32 | 760 | 9.3*3*3.3 |
| 1600-800 | 250-315 | 60～80 | 1600-800 | 32 | 900 | 10.1*3.1*3.5 |
| 2000-1000 | 315-400 | 80～100 | 2000-1000 | 32 | 960 | 13*3.4*3.9 |
